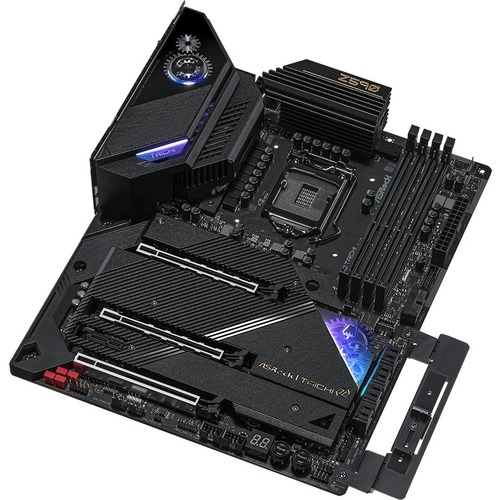

ASRock Z590 Taichi Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX - Celeron, Core i3, Core i5, Core i7, Core i9, Pentium Gold Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - G

ASRock Z590 Taichi Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX - Celeron, Core i3, Core i5, Core i7, Core i9, Pentium Gold Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ax - HDMI - 8 x SATA Interfaces

Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors 14 Phase Dr.MOS Power Design Supports DDR4 5000MHz (OC) 2 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 Graphics Output Options: HDMI, 2 x Thunderbolt™ Type-C 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio 8 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4)2 x Ultra M.2 (PCIe Gen3 x4 & SATA3) 2 x Thunderbolt™ 4/USB 4.0 Type-C (40Gb/s) 1 x USB 3.2 Gen2x2 Front Type-C (20Gb/s)2 x Rear USB 3.2 Gen2 Type A (10Gb/s)8 x USB 3.2 Gen1 (4 x Rear, 4 x Front) Killer E3100G 2.5G LAN, Intel® Gigabit LAN Killer AX1675x 802.11ax(WiFi 6E) + BT 5.2 Lightning Gaming Ports (Patent Pending) ASRock Graphics Card Holder (Patent Pending) PHILOSOPHY OF INFINITE POTENTIAL Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task - with style! Become like water. Shapeless, formless, versatile for any situation. Tailor-made Motherboards | Innovative Design & Modernized Materials Personalized MOS FAN Optimized FAN design for the better heat disspation. You can choose bundled 3CM high performance fan, or upgrade to your own 4CM fan for better cooling and silence performance. ASRock Graphics Card Holder | (Patent Pending) Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place. 8LAYER & 2OZ COPPER PCB The 8 Layer PCB comes with 4 sets of 2 ounce copper inner layers, providing stable signal traces and power shapes and delivering lower temperature and higher energy efficiency for overclocking! Thus, it''s able to support the latest DDR4 memory modules with most extreme memory performance! SPS (Smart Power Stage) Dr. MOS design features the latest SPS (Smart Power Stage) technology. It''s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. Premium 90A Power Choke Compared to traditional chokes, ASRock''s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. 14 Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Lightning Gaming Ports | (Patent Pending) Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that allow gamers to connect the high speed mice/keyboard with the lowest jitter latency and win the best performance! PCIe 4.0 High Speed M.2 Solution This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. METAL BACKPLATE Strengthens the motherboard to prevent bending caused by heavy coolers or graphics cards with better airflow and enhanced stability.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: Z590
Total Processor Supported: 1
Processor Socket: Socket LGA-1200
Processor Supported: Celeron, Core i3, Core i5, Core i7, Core i9, Pentium Gold
Multi GPU Supported: CrossFireX
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 5000 MHz, 4800 MHz
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Bluetooth: Yes
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ax
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 3
Total Number of USB Ports: 6
Number of USB 3.2 Gen 1 Ports: 4
Number of USB 3.2 Gen 2 Type-A Ports: 2
S/PDIF: Yes
HDMI: Yes
Number of Network (RJ-45) Ports: 2
Number of Thunderbolt 4 Ports: 2
Number of SATA Interfaces: 8
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 9
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 5
Product Color: Matte Black
Form Factor: ATX
Width: 12"
Depth: 9.6"
Brand Compatibility: Intel
