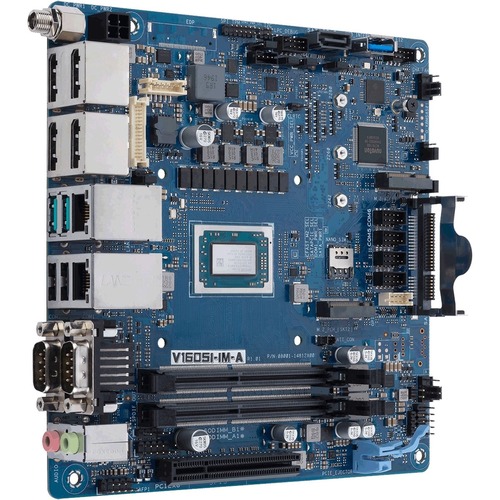

Asus V1605I-IM-A Desktop Motherboard - AMD Chipset - Mini ITX - AMD Ryzen V1605B - 64 GB DDR4 SDRAM Maximum RAM - DDR4-2400/PC4-19200 - SoDIMM - 2 x Memory Slots - Gigabit Ethernet - DisplayPort - 1 x SATA Interfaces V1605I-IM-A

Asus V1605I-IM-A Desktop Motherboard - AMD Chipset - Mini ITX - AMD Ryzen V1605B - 64 GB DDR4 SDRAM Maximum RAM - DDR4-2400/PC4-19200 - SoDIMM - 2 x Memory Slots - Gigabit Ethernet - DisplayPort - 1 x SATA Interfaces

AMD Ryzen Embedded V1000-Series V1605 Mini-ITX motherboard, two SO-DIMM slots, four DisplayPort (option upon request), two M.2 slots, two SATA port (option upon request), PCIe x8 Supports AMD Ryzen Embedded V1000-Series V1605 Two SO-DIMM slots support up to 32GB DDR4 2400 MHz SDRAM Lockable DC-in connector supported Supports Four display configurations with multiple interfaces, including 3 DisplayPort and 1 LVDS (factory default), 4 DisplayPort (option upon request), 3 DisplayPort and 1 eDP (option upon request) Advanced I/O and connectivity features: CCtalk & CFAST supported Seven years of longevity with extended product life cycles Wide temperature range endurance: 0~60°C ASUS V1605I-IM-A is a Mini-ITX industrial motherboard featuring rich I/O capabilities, advanced connectivity and flexible customization options in a smaller board that reduces chassis sizes for space-restrictive installations. Offering multiple display outputs, legacy options for industrial applications, GPIO ports, dual Intel LAN as well as rich expandability with a PCIe x8 slot, two M.2 sockets (E and B key) and lockable DC-in connector. ASUS V1605I-IM-A is an ideal choice for a wide range of embedded applications. As the world''s No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.

Technical Specifications:
Chipset Manufacturer: AMD
Total Processor Supported: 1
Integrated Processor Manufacturer: AMD
Integrated Processor Type: Ryzen
Integrated Processor Model: V1605B
Number of Memory Slots: 2
Memory Form Factor: SoDIMM
Maximum Memory Supported: 64 GB
Memory Standard: DDR4-2400/PC4-19200
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2400 MHz
Controller Type: Serial ATA/600
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x8 Slots: 1
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 2
Number of USB 3.2 Ports: 2
DisplayPort: Yes
DVI: Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 1
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 3
Number of Onboard USB 2.0 Ports: 2
Number of Onboard USB 3.2 Ports: 1
Onboard S/PDIF Header: Yes
Form Factor: Mini ITX
Width: 6.7"
Depth: 6.7"
Package Contents:

V1605I-IM-A Desktop Motherboard, 1 x IO Shield, 1 x SATA 6G Cable, 1 x M.2 Screw Pack, 1 x Fansink Backplane, 1 x Fansink

Brand Compatibility: AMD
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
