C2G TruLink A/V Controller

The TruLink A/V Controller is a full-featured in-wall solution that is perfect for easy control of all classroom or conference room audio/video equipment; including up to two serial devices, such as a projector or display, a 12V DC triggered device, such as a projector screen or blinds and IR devices such as a DVD/Blu-ray player, document camera and other equipment. Specifically constructed for use in classrooms and conference rooms, this controller is innovatively simple to install, program and operate. Consolidate control in one convenient location. No more searching for remotes, replacing expensive batteries or fumbling with small remote keys that are in a different position on each different remote. The TruLink A/V Controller provides the features needed without the cost and complexity associated with "higher end" solutions.Large, backlit buttons for easy identification and quick operationOn-board, real-time clock for easy time and date programming, including automatic start-up and shut-down capability ensuring equipment is ready when needed and powered off at the end of the day to extend equipment lifeDual DB9 RS-232 ports provides control for two projectors or a projector and amplifier12V DC Triggering provides control for electromechanical devices, such as projector screens or blindsBackup capability eliminates the need for reprogramming in the event of a power failureUp to 32 commands for control of numerous A/V devicesDurable construction backed by a three year warranty ensures consistent operation in the demanding classroom environment While the controller is intended for easy operation, it was designed and engineered for the installer. Multiple options for programming ensure installations are quick and scalable to accommodate even the largest deployments. Changes are easily made without the need to remove the controller from the wall when equipment is upgraded, swapped out or added.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Technical Specifications:
Product Color: White
Product Material: Nylon, ABS Plastic
Form Factor: Wall Mountable
Weight (Approximate): 15.97 oz
Package Contents: Wall Plate Controller, Multiport Controller Interface Adapter (MCIA), Power Adapter
Additional Information:

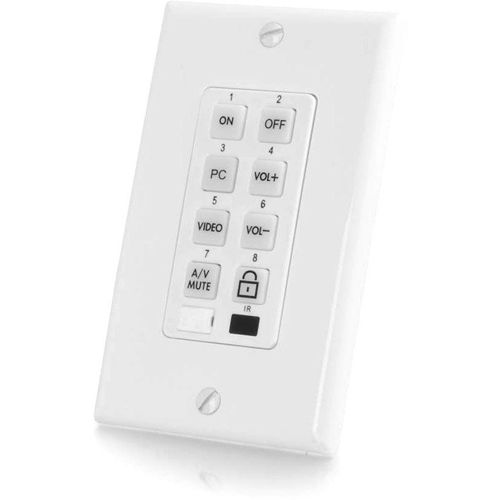

Wall Plate Controller

Number of buttons: 8, Control type supported: Serial RS232, Infrared (IR), 12V DC Triggering, Data/Power connection: RJ45, Buttons: Rubberized - contact style, PCB Dimensions (HxWxD): 103 x 45 x 25mm, Weight: 0.10lbs

Multiport Controller Interface Adapter (MCIA)

Connections: 5.5mm DC Power, DB9 Male x 2, 3.5mm TS, 2-Port Screw Terminal (IR), RJ45, 3-Port Screw Terminal (12V trigger), Dimensions (HxWxD): 23.5 x 82.4 x 69.1mm, Weight: 0.2lbs

Power Adapter Specifications

Input Power: 100 - 240V, 50-60Hz, 0.2A, Output Power: 12V, 0.5A, Cable Length: 6ft, Power Pin Diameter: 5.5mm, Center Pin Polarity: Positive

System Requirements

Operating System: Windows® Server 2003, XP, Vista, Sever 2008, or 7, Processor: 400MHz Pentium® processor or equivalent (Minimum), 1GHz Pentium® processor or equivalent (Recommended), RAM: 96MB (Minimum), 256MB (Recommended), Hard Disk: Up to 500MB of available space may be required, Display: 800x600, 256 Colors (Minimum), 1024x768, high color, 32-bit (Recommended)
Application/Usage: Classroom, Conference Room
Country of Origin: China
