Chief PCS Straight Column Single Ceiling Mount - 200lb PCS2535

Chief PCS Straight Column Single Ceiling Mount - 200lb PCS2535
Brand: Chief Manufacturing
Part Number: PCS2535
Availability: 5 or more
Condition: New
Email Us

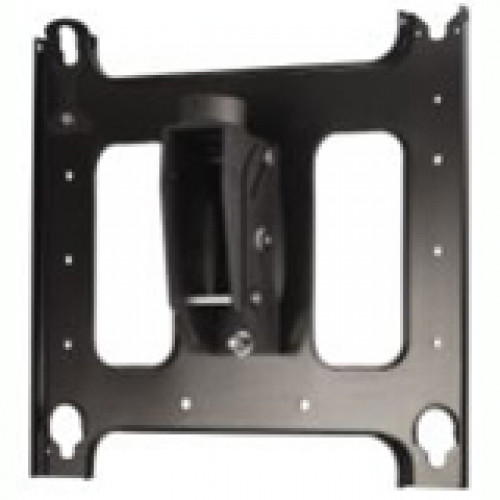

Chief PCS Straight Column Single Ceiling Mount - 200lb

Single display ceiling mount designed to thread directly into 1.5" NPT for a fast and secure installation. The PCS-2535 is a great solution for retrofit applications with existing columns or new construction digital signage, airports, bars and restaurant installations.


Technical Specifications:
Maximum Load Capacity: 200 lb
Product Color: Black
Height: 17.1"
Width: 16.2"
Depth: 4.2"
Package Contents:

PCS Straight Column Single Ceiling Mount Includes:

1 x MOUNT ASSEMBLY, Ceiling, PCS-2000, 1 x SCREW, Set, 5/16" - 18, 1 x WRENCH, Hex, 5/32", 2 x Side Interface Bracket, 2 x Top/Bottom Bracket, 4 x Mounting Buttons-10-24 Tapped, 4 x (10-24 x .5) Button Head Cap Screw, 8 x (¼-20 x .5) Phillips Head Cap Screw, 7 x (M6 x 40mm) Phillips Pan Head Screw, 6 x (.74 x .39 x 1.0) White Nylon Spacer, 1 x 1/8" Allen Key, 1 x (10mm x M6.3mm x 28mm) Black Nylon Spacer
Additional Information: Yaw: 360º, Roll: +/- 2 degrees, Pitch: +5/-20 degrees, Q-latch Mounting System, Display installs in portrait or landscape, Cable management through extension column, The tilt range for the mounting faceplate is ±15° from vertical, No tools tilt adjustment for ultra fast screen positioning with lock down option
Compatibility:

Extra Large Flat Panel Display


Certifications & Standards:

UL
