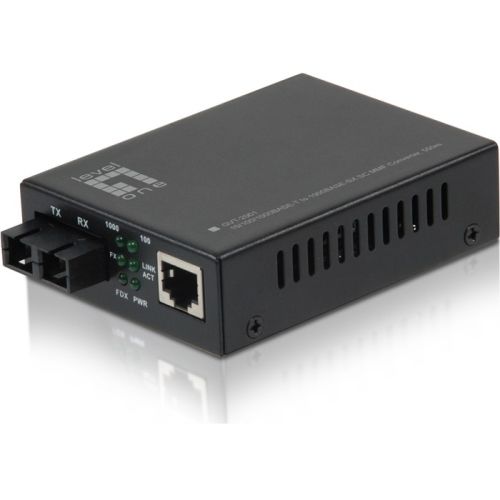

Cp Technologies LevelOne GVT-2001 10/100/1000BASE-T to 1000BASE-SX MMF SC Mini Media Converter, 550m - Mini Media converter, 10/100/1000BASE-T to 1000BASE-SX MMF SC GVT-2001

LevelOne GVT-2001 10/100/1000BASE-T to 1000BASE-SX MMF SC Mini Media Converter, 550m - Mini Media converter, 10/100/1000BASE-T to 1000BASE-SX MMF SC

The GVT-2001 MMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100/1000Base-T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and 1000Base-T auto-sensing. Used in multi-mode with fibre-optic cabling, this can extend a network range up to 550m. The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as cut through and smart pass through mode.

Technical Specifications:
Total Number of Ports: 2
Network (RJ-45): Yes
DVI: No
USB: No
Parallel Port: No
Digital Audio: No
Digital Audio/Video: No
Management Port: No
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
SC Port Type: Duplex
Media Type Supported: Twisted Pair, Optical Fiber
Fiber Mode Supported: Multi-mode
Maximum Distance Supported: 1804.46 ft
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T, 1000Base-SX
Input Voltage: 5 V DC
Form Factor: Desktop, Wall Mountable
Height: 1"
Width: 2.8"
Depth: 3.7"
Weight (Approximate): 14.82 oz
Package Contents: 10/100/1000BASE-T to 1000BASE-SX MMF SC Converter, 550m, Power Adapter, Quick Installation Guide
Compatibility: LevelOne CVH-2000 Media Converter Chassis
Certifications & Standards: FCC, CEIEEE Standards:
802.3, 802.3x, 802.3u, 802.3z, 802.3ab
Country of Origin: China
