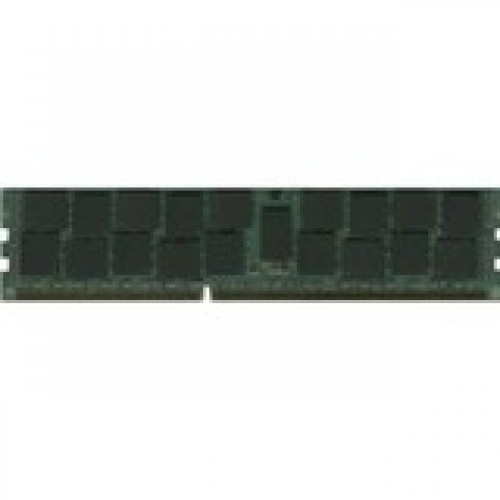

Dataram 16GB DDR3 SDRAM Memory Module - 16 GB (1 x 16 GB) - DDR3-1866/PC3-14900 DDR3 SDRAM - CL13 - 1.50 V - ECC - Registered - 240-pin - DIMM DTM64419F

Dataram 16GB DDR3 SDRAM Memory Module - 16 GB (1 x 16 GB) - DDR3-1866/PC3-14900 DDR3 SDRAM - CL13 - 1.50 V - ECC - Registered - 240-pin - DIMM

DTM64419F is a registered 2Gx72 memory module, which conforms to JEDEC''s DDR3, PC3-14900 standard. The assembly is Dual-Rank. Each Rank is comprised of eighteen Samsung 1Gx4 DDR3-1866 SDRAMs. One 2Kbit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Technical Specifications:
Memory Size: 16 GB
Memory Technology: DDR3 SDRAM
Memory Voltage: 1.50 V
Number of Modules: 1 x 16GB
Memory Speed: 1866 MHz
Memory Standard: DDR3-1866/PC3-14900
Error Checking: ECC
Signal Processing: Registered
CAS Latency: CL13
Number of Pins: 240-pin
Form Factor: DIMM
Thickness: 155.1 mil
Width: 1.2"
Length: 5.3"
Environmentally Friendly: Yes
Environmental Certification: RoHS
