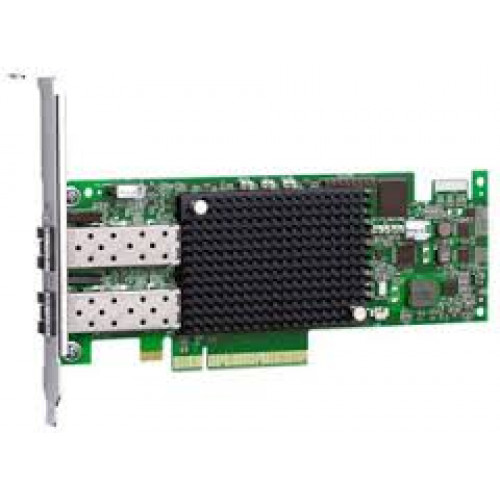

EMULEX Lightpulse 16gb Dual Port Pci-e 3.0 Fibre Channel Host Bus Adapter With Standard Bracket Card Only. System Pull LPE16002B-M8

Detail overview

General
Device Type : Host Bus Adapter
Form Factor : Plug-in Card - Low Profile
Interface (bus) Type : Pci Express 3.0 X8
Pci Specification Revision : Pcie 3.0

Networking
Ports : 16gb Fibre Channel X 2
Connectivity Technology : Wired
Data Link Protocol : 16gb Fibre Channel (sw)
Fibre Channel : Fc-al, Fc-al-2, Fc-da, Fc-fla, Fc-fs, Fc-gs-2, Fc-gs-3, Fc-gs-4, Fc-mi, Fc-ph, Fc-ph-2,
fc-ph-3, Fc-pi, Fc-plda, Fc-sb-2, Fc-tape, Fc-sp, Fcp-4, Fcp, Fcp-2, Fc-pi-2, Fc-fs-2, Fc-gs-5, Fc-pi-4,
fc-gs-6, Fc-hba, Fc-pi-5, Fc-ls-2, Fc-sp-2, Fc-mjs, Fc-sb-4, Rfc2625, Ssc-2, Sbc-2, Spc-3
Data Transfer Rate : 14.025 Gbps
Max Transfer Distance : 410 Ft
Remote Management Protocol : Smi-s, Cli
Features : Auto-negotiation, Manageable, Firmware Upgradable, Extended Message-signaled Interrupts (msi-x),vengine, Greenstate, Blockguard, Vscale

Expansion / Connectivity
Expansion Slots : 2 (total) / 0 (free) X Sfp+
Interfaces : 2 X 16gb Fibre Channel (short Wave) - Lc Multi-mode X 2

System Requirements
Os Required : Sunsoft Solaris, Linux, Microsoft Windows Server

Dimensions
Depth : 6.6 In
Height : 2.7 In
