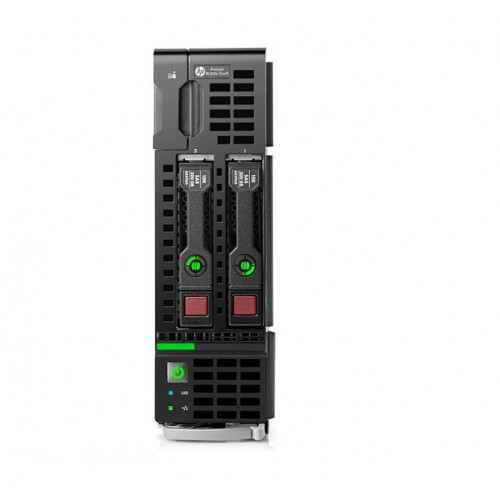

HPE Proliant Bl460c Gen9 S-buy 1x Intel Xeon 6-core E5-2620v3/ 2.4ghz, 32gb(2x16gb) Ddr4 Sdram, Smart Array H244br Without Fbwc, 10gb 2-port 536flb Adapter Blade Server 779806-S01

Detail overview

General Information :
Product Name: Proliant Dl360 Gen9 - Blade Server( S-buy)

Processor & Chipset :
Processor Type : Intel Xeon E5-2620v3/ 2.4ghz
Max Turbo Speed : 3.2 Ghz
Quickpath Interconnect: 9.60 Gt/s
Number Of Cores : 6-core
64-bit Computing : Yes
Compatible Processor Socket : Fclga2011-3
Installed Qty : 1
Max Supported Qty : 2
Chipset Type : Intel C610 Series

Cache Memory :
Installed Size : L3 Cache - 15 Mb
Cache Per Processor : 15 Mb

Ram :
Installed Size : 32 Gb / 512 Gb (max)
Technology : Ddr4 Sdram - Advanced Ecc
Effective Memory Speed : 1866 Mhz
Rated Memory Speed : 2133 Mhz
Memory Specification Compliance : Pc4-17000
Form Factor : Dimm 288-pin
Slots : 16 (total) / 14 (empty)
Features : Registered, Online Spare Memory, Hp Smartmemory
Configuration Features : 2 X 16 Gb
Ram Supported : 512 Gb Registered - Advanced Ecc 2 Tb Load-reduced - Advanced Ecc

Storage:
Hard Drive : None
Optical Drive : None

Storage Controllers:
Storage Controller Name : Smart Array H244br
Buffer Size : None
Disk Drive : 12gb/ssas (serial Attached Scsi)
Protocol Support : 6gb/s Sata (serial Advanced Technology Attachment)
Data Transfer Method : 12gb/s Per Port For Combined Throughput Of Up To 24gb/s
Pcie Bus Speed : Pcie 3.0 X8 (8gt/s Maximum Bandwidth)
Port Transfer Rate : 24gb/s Per X1 Sas Port (2x 12gb/s)
Maximum Capacity : 2.4tb Sas,2.4tb Sata
Memory Addressing : 64-bit, Supporting Servers Memory Greater Than 4gb
Raid Support : Raid 0, Raid 1, Raid 10

Display & Graphics:
Graphics Controller Type : Integrated Matrox G200eh

Network & Communication:
Type : Plug-in Card
Interface (bus) Type : Flexiblelom
Ethernet Ports : 2 X 10 Gigabit Ethernet
Ethernet Controller : Hp Flexfabric 536flb
Data Link Protocol : Gigabit Ethernet, 10 Gigabit Ethernet, Fibre Channel Over Ethernet (fcoe)
Remote Management Protocol : Snmp, Ipmi 2.0, Smash Clp
Remote Management Controller : Integrated Lights-out 4
Compliant Standards : Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.3ae, Ieee 802.3ap, Ieee 802.1qau

Expansion/ Connectivity :
Expansion Bays Total (free) :
2 (total) / 2 (free) X Hot-swap 2.5 Sff

Expansion Slots Total (free) :
2 (total) / 1 (free) X Cpu
16 (total) / 14 (free) X Dimm 288-pin
2 Expansion Slot (x16 Mode)
1 (total) / 1 (free) X Microsdhc Card (internal)
1 (total) / 0 (free) X Flexiblelom

Interfaces & Ports :
1 X Hp Ilo
1 X Usb 3.0 ( 1 Internal )
2 X Lan (10gigabit Ethernet)

Miscellaneous :
Features :
Administrator Password
Power-on Password
Keyboard Password
Usb Port Control
Quicklock

Compliant Standards :
Acpi 2.0, Fips 140-2 Level 2, Aes, Triple Des, Ashrae

Hp Smart Buy

Dimensions & Weight:
Width : 2.2 In
Depth : 20.4 In
Height : 7.1 In
Weight : 10.5 Lbs
