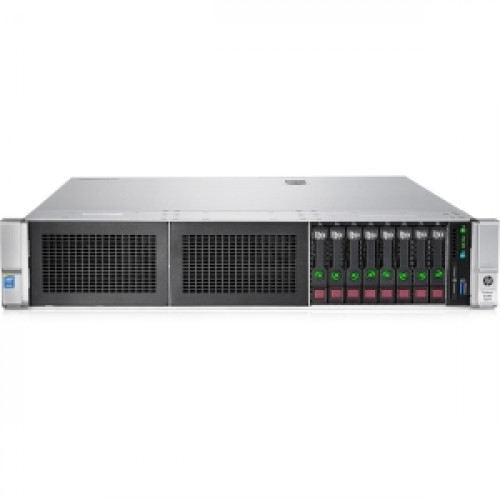

HPE Proliant Dl380 G9 S-buy 1x Intel Xeon E5-2620v3/2.40ghz, 16gb Ddr4 Sdram, Hp H240ar Smart Host Bus Adapter, 4x Gigabit Ethernet, 1x 500w Ps, 2u Rack Server 777337-S01

HPE Proliant Dl380 G9 S-buy 1x Intel Xeon E5-2620v3/2.40ghz, 16gb Ddr4 Sdram, Hp H240ar Smart Host Bus Adapter, 4x Gigabit Ethernet, 1x 500w Ps, 2u Rack Server 777337-S01
Brand: HPE
Part Number: 777337-S01
Availability: 5 or more
Condition: Refurbished
Email Us

+ -

Add to Wish List
Add to Compare

Detail overview

General Information:
Product Name : Proliant Dl380 G9 2u Rack Server(s-buy)

Processor & Chipset :
Processor Type : Intel Xeon E5-2620v3/2.4ghz
Multi-core Technology : Hexa-core
Installed Qty : 1
Max Supported Qty : 2
Upgradability : Upgradable
64-bit Computing : Yes
Chipset Model : Intel C610

Cache Memory :
Installed Size : L3 Cache - 15 Mb
Cache Per Processor : 15 Mb

Ram :
Installed Size : 16gb
Max Supported Size : 384gb
Ram Technology : Ddr4 Sdram
Memory Speed : 1866 Mhz
Form Factor : Dimm 288-pin
Features : Registered, Hp Smartmemory
Configuration Features : 1x 16gb
Ram Supported :

  • Pc4-17000 - 384 Gb - Registered
  • Pc4-17000 - 768 Gb - Load-reduced

    Storage & Storage Controller :
    Hard Drive : None
    Type : 1x Raid - Pci Express 3.0 X8
    Controller Interface Type : Sata 6gb/sas 3.0
    Storage Controller Name : Hp H240ar Smart Host Bus Adapter
    Channel Qty : 8
    Raid Level : Raid 0, Raid 1, Raid 5

    Display & Graphics Controller :
    Graphics Controller Type : Integrated
    Graphics Processor: Matrox G200eh2
    Video Interfaces : Vga

    Networking :
    Ethernet Ports : 4x Gigabit Ethernet
    Ethernet Controller : Hp 331flr
    Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
    Remote Management Controller : Integrated Lights-out 4
    Features : Wake On Lan (wol), Pxe Support

    Expansion / Connectivity :
    Expansion Bays Total (free) :
  • 8 ( 8 ) X Hot-swap - 2.5inch Sff

    Expansion Slots Total (free) :
  • 2 ( 1 ) X Processor
  • 24 ( 23 ) X Dimm 288-pin
  • 2 ( 2 ) X Pcie 3.0 X16 - Half-length, Full-height ( X8 Mode )
  • 1 ( 1 ) X Pcie 3.0 X8 - Half-length, Full-height
  • 1 ( 1 ) X Microsd Card (internal)

    Interfaces :
  • 4 X Lan (gigabit Ethernet) - Rj-45
  • 1 X Hp Ilo - Rj-45
  • 1 X Vga
  • 5 X Usb 3.0 ( 1 Front, 2 Rear, 2 Internal )

    Power Device :
    Power Device Type : Power Supply - Hot-plug
    Power Redundancy : Optional
    Power Redundancy Scheme : 1+1 (with Optional Power Supply)
    Installed Qty : 1
    Max Supported Qty : 2
    Voltage Required : Ac 120/230 V
    Power Provided : 500watt Hot Plug Power Supplies
    80 Plus Certification : 80 Plus Platinum

    Dimension & Weight :
    Height : 3.4 In
    Width : 17.5 In
    Depth : 26.7 In
    Weight : 32.5 Lb
    • Tags: 777337-S01, HEXA-CORE XEON 2.4GHz, HPE, PROLIANT DL380, SERVERS
