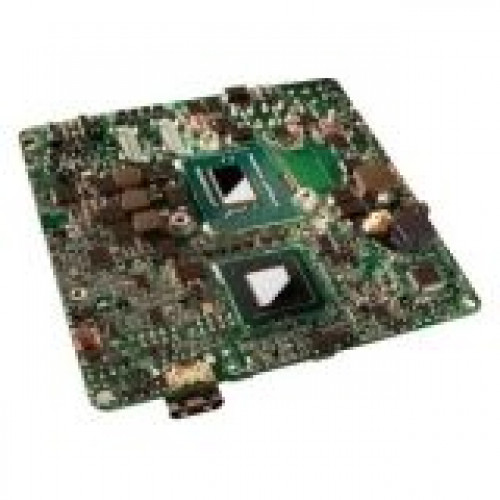

Intel D33217CK Desktop Motherboard - Chipset - Core i3 i3-3217U - 16 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-1600/PC3-12800 - SoDIMM - 2 x Memory Slots - HDMI - China RoHS, EU RoHS Compliance BLKD33217CK

Intel D33217CK Desktop Motherboard - Intel Chipset - Intel Core i3 i3-3217U - 16 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-1600/PC3-12800 - SoDIMM - 2 x Memory Slots - HDMI - China RoHS, EU RoHS Compliance

Intel''s Next Unit of Computing Board D33217CK is a tiny 4¨x4¨x1.5¨ with the power of the 3rd generation Intel® Core™i3- 3217U processor.The board features dual HDMI ports to offer dual display capabilities along with five USB ports and an Intel Gigabit Ethernet adapter to provide expandability and scale unseen in this form factor. Dual mini-PCIe slots also ensure flexible support for wireless and SSD configurations. Two SO-DIMMs for expandability up to 16GB of memory ensures that you don''t miss out on anything.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: QS77 Express
Processor Technology: Extended Memory 64 Technology
64-bit Processing: Yes
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Core i3
Integrated Processor Model: i3-3217U
Integrated Processor Speed: 1.80 GHz
Integrated Processor Cache: 3 MB
Integrated Processor Core: Dual-core (2 Core)
Number of Memory Slots: 2
Memory Form Factor: SoDIMM
Maximum Memory Supported: 16 GB
Memory Standard: DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-1600/PC3-12800
Memory Technology: DDR3 SDRAM
Memory Speed Supported: 1600 MHz, 1333 MHz, 1066 MHz
Onboard Video: CPU Dependent Video
Graphics Controller Manufacturer: Intel
Graphics Controller Model: HD 4000
Graphics Memory Technology: DDR3 SDRAM
Graphics Memory Accessibility: Shared
Sound Controller Manufacturer: Intel
Audio Channels: 7.1
Number of Total Expansion Slots: 2
Total Number of PCI Express Slots: 2
Number of Mini PCI Express Slots: 2
Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
HDMI: Yes
Number of HDMI Outputs: 1
Thunderbolt: Yes
Total Number of Onboard USB Ports: 3
Number of Onboard USB 2.0 Ports: 3
Onboard LEDs Header: Yes
Onboard Audio Header: Yes
Operating Power Consumption: 65 W
Form Factor: Proprietary Form Factor
Width: 4"
Depth: 4"
Package Contents: D33217CK Desktop Motherboard, Fan Heatsink
Certifications & Standards:

EMC Class B Regulations:

CISPR 22, CIPSR 24, FCC 47 CFR Part15,Subpart B, ICES-003, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, IEC/EN 61000-4 Series, VCCI V-3, KN-22, KN-24, CNS 13438

Compliance with Regulations and Standards Safety Regulations:

UL/CSA 60950-1, EN 60950-1, IEC 60950-1, NOM-019-SCFI-1998, GOST-R, ACPI v3.0b
Environmentally Friendly: Yes
Environmental Certification: China RoHS, EU RoHS
