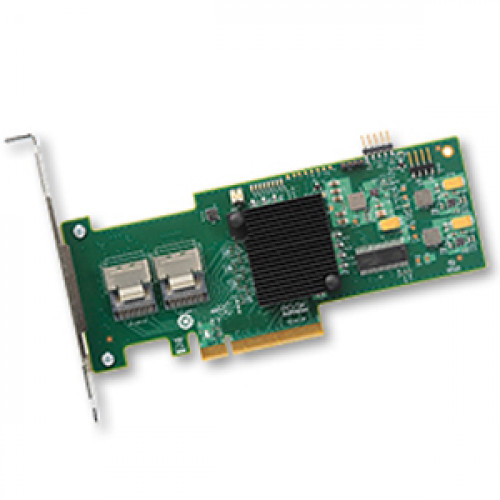

LENOVO 9210-8i 8-port, 6gb/s Sas+sata To Pci Express Host Bus Adapter M1015

Detail overview

Lenovo M1015 9210-8i 8-port, 6gb/s Sas+sata To Pci Express Host Bus Adapter.

Host Bus Type: x8 Lane Pci Express 2.0

Physical Dimensions: Low Profile (2.6” X 6.6”)

Devices Supported : 256 Non-raid Sas/sata Devices

Fusion Mpt Support : Fusion Mpt 2.0

Internal Connectors: 2 Mini-sas Sff8087 (vertival)

Operating Temperature: 0°c To 55°c

Operating Voltage (v) : +12v +/-8%, 3.3v +/-8%

Os Support : Microsoft Windows, Linux (suse , Red Hat), Solaris, Vmware, Freebsd

Pci Power: 7w Typical (airflow Min 200 Lfm)

Cable Support : Passive Copper

I/o Controller : Lsi Sas2008

Mtbf : > 2,000,000 Hours

Operating Humidity : 5% To 90% Non-condensing
