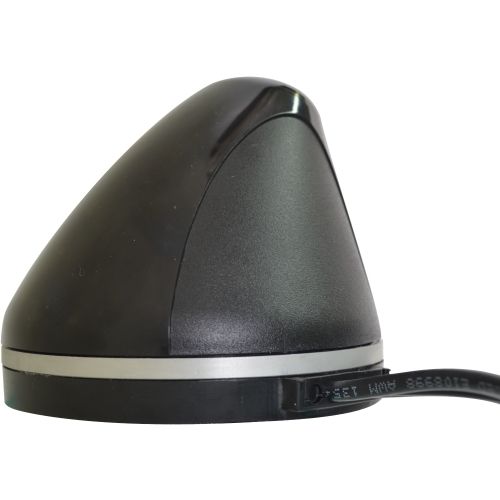

Mobile Mark MGW303-3J3J00-BLK-204 Antenna - 2.10 GHz, 4.40 GHz to 2.50 GHz, 6 GHz - 26 dB - Wireless Data Network - Black - Magnetic Mount - RP-SMA Connector MGW303-3J3J00-BLK-204

The SMW-303 Series Antenna provides multiband coverage on WiFi at 2.4 & 5 GHz, Public Safety at 4.9 GHz, Military at 4.4 GHz and GPS. It can also cover the UMTS band at 2.1 GHz or WiMAX at 2.3 GHz. The antenna is configured with 3 cables: one for GPS and the other two for the modems.This surface mount multiband antenna mounts easily to a roof, trunk or bulkhead. The stud mount design uses a ¾" feed thru (19mm) for securing to the vehicle. The WiFi cables are 15 feet of low-loss RF-195 (4.5 meters). GPS cable is 15 feet of RF-174. All connectors are male unless otherwise requested. For best performance, the antenna should be mounted on a metal surface or ground plane. A Mag-mount version is available with the same performance specs. The antennas are enclosed in a 4.2"D x 3.2"H weatherproof ASA radome (107 mm x 81 mm) and supplied with all mounting hardware and a sealing gasket. The SMW Series is extremely weather resistant and rated IP67 for Dust and Water Ingress. The antennas have also passed industrial and military shock and vibration testing.
