Sans Digital AccuRAID AR442F8R DAS Array - 42 x HDD Supported - 126 TB Supported HDD Capacity - 42 x SSD Supported - 126 TB Supported SSD Capacity - Serial ATA, Serial Attached SCSI (SAS) Controller - RAID Supported 0, 1, 3, 5, 6, 10, 30, 50, 60, 1+Hot Sp

Sans Digital AccuRAID AR442F8R DAS Array - 42 x HDD Supported - 126 TB Supported HDD Capacity - 42 x SSD Supported - 126 TB Supported SSD Capacity - Serial ATA, Serial Attached SCSI (SAS) Controller - RAID Supported 0, 1, 3, 5, 6, 10, 30, 50, 60, 1+Hot Spare, 3+Hot Spare, 5+Hot Spare, 6+Hot Spare, 10+Hot Spare, 30+Hot Spare, 50+Hot Spare, 60+Hot Spare, JBOD, 1, 10, 3, 5, 6, 3+0, 50, 60, JBOD, 1+Hot Spare, ... - 42 x Total Bays - 42 x 2.5"/3.5" Bay - 4U - Rack-mountable

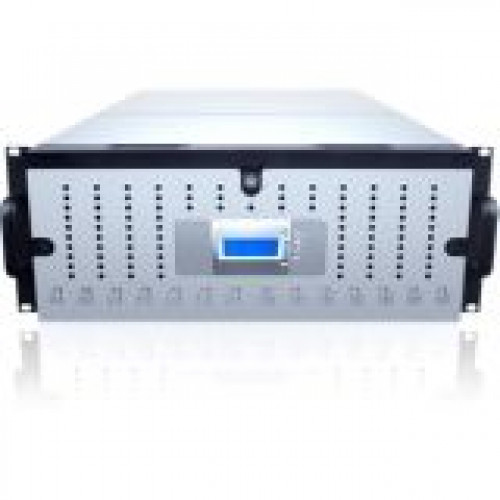

The AccuRAID AR442F8R series is a high density 4U rackmount designed for storage hungry applications, and accommodates up to 126TB of storage space. The unit utilizes advanced Fibre technology when operating as direct attached storage (DAS), and could be setup as a storage area network (SAN) with the assistance of a Fibre Channel network switch. In addition, the quad Fibre Channel ports allow the support of clustering, where the unit could be accessed by multiple servers, ensuring continuous uptime in a production environment. To reinforce the AR442F8R''s ability to overcome hardware failure, two redundant and hot-swappable power supplies and cooling fans are available for added safeguard. Active-Active redundant controllers allows further failure protection when needed. Internally, the AR442F8R supports up to RAID 60, with RAID monitoring, RAID notification, automatic failover, and automatic recovery. Build-in expansion port allow up to two additional JBOD unit (AS424X6R) with up to 126 bays or 378TB. The unit''s built-in Ethernet port with web based management console and SES management features provide instant access to the status of the RAID array and the enclosure to reduce downtime. SAS drives is supported, while SATA can be used with additional mux board.

Technical Specifications:
Number of Hard Drives Supported: 42
Total Hard Drive Capacity Supported: 126 TB
Number of Solid State Drive Supported: 42
Total Solid State Drive Capacity Supported: 126 TB
Features: S.M.A.R.T
Number of Total Expansion Bays: 42
Number of 2.5"/3.5" Bays: 42
Controller Type: Serial ATA, Serial Attached SCSI (SAS)
RAID Supported: Yes
RAID Levels: 0, 1, 3, 5, 6, 10, 30, 50, 60, 1+Hot Spare, 3+Hot Spare, 5+Hot Spare, 6+Hot Spare, 10+Hot Spare, 30+Hot Spare, 50+Hot Spare, 60+Hot Spare, JBOD, 1, 10, 3, 5, 6, 3+0, 50, 60, JBOD, 1+Hot Spare, 10+Hot Spare, 3+Hot Spare, 5+Hot Spare, 6+Hot Spare, 30+Hot Spare, 50+Hot Spare, 60+Hot Spare
Host Interface: Fibre Channel
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 1100 W
Redundant Power Supply: Yes
Height: 7"
Width: 19"
Depth: 30.7"
Form Factor: Rack-mountable
Rack Height: 4U
Weight (Approximate): 100 lb
