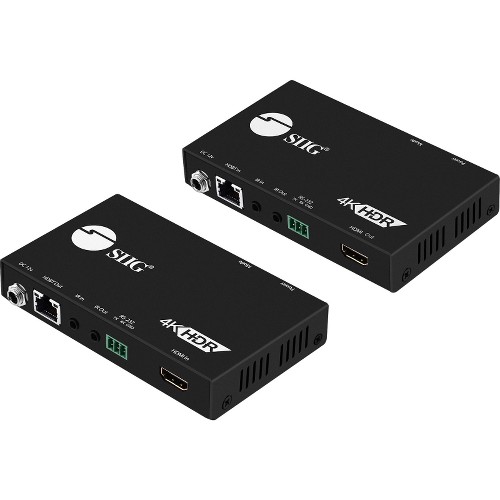

SIIG 4K HDR HDMI 2.0 HDBaseT Extender Over Single Cat5e/6 with RS-232 & IR - 60m - Bi-directional IR Sensors CE-H23211-S1

SIIG 4K HDR HDMI 2.0 HDBaseT Extender Over Single Cat5e/6 with RS-232 & IR - 60m - Bi-directional IR Sensors

Extends HDMI audio and video signals, RS232 control, IR control up to 60 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology Extends HDMI 2.0 audio and video signal from your HDMI source to a remote HDMI display up to 196ft (60m) away at Full HD 1080p, or 114ft (35m) at 3840x2160@60Hz (4:4:4 8bit/HDR10 4:2:0 10bit) through a single premium quality CAT5e/6 cable Delivers crystal clear picture quality with resolution up to 3840x2160 @60Hz YUV444 8bit and HDR 3840x2160 @60Hz YUV420 10bit Pure unaltered uncompressed 7.1ch digital HDMI over CAT cable transmission, DTS-HD Master Audio and Dolby TrueHD high bit rate audio support Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered through only one power adapter Bi-directional IR sensors allow you to remotely control the HDMI source device from the remote display side or control the remote display from the source device side High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use Slim profile design easily adopts into versatile application environment, wall mountable housing for easy and varied installation requirements

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 196.85 ft
Graphics Modes: 4K
Maximum Video Resolution: 3840 x 2160
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Transmitter Height: 0.80"
Transmitter Width: 2.80"
Transmitter Depth: 4.70"
Form Factor: Wall Mountable
Transmitter Weight (Approximate): 9.28 oz
Package Contents:

1 x Transmitter (TX), 1 x Receiver (RX), 1 x Power Adapter with Power Cord, IR Blaster Extension Cable & IR Receiver Extension Cable, 4 x Mounting Ears & Screw Kit (8+4), 2 x RS232 Terminal Block Connectors, User Reference Guide

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
TAA Compliant: Yes
