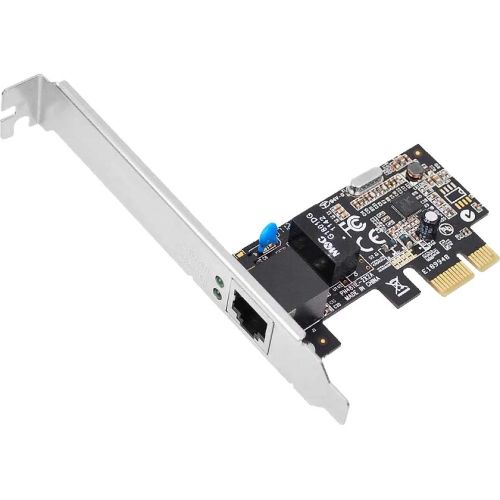

SIIG DP Gigabit Ethernet PCIe - PCI Express - 1 Port(s) - 1 x Network (RJ-45) - Twisted Pair - Low-profile - RoHS, WEEE Compliance CN-GP1021-S3

SIIG DP Gigabit Ethernet PCIe - PCI Express - 1 Port(s) - 1 x Network (RJ-45) - Twisted Pair - Low-profile - RoHS, WEEE Compliance

Adds a high-speed Gigabit Ethernet port into PCI Express (PCIe) enabled computers Supports crossover detection & auto-correction Supports full duplex mode that doubles the network connection speed Supports Wake On LAN (WOL) power management Checksum and Segmentation Task-offload reduce CPU workloads for enhanced system response and network scalability Automatic MDI/MDIX crossover at all speeds Supports Flow Control, Layer 2 Priority Queuing, VLAN Tang and Jumbo Frames LEDs indicate the Link/Activity status and 10/100/1000 Mbps Easy plug-n-play installation Works in any available PCI Express slot Dual Profile design to work with standard height and low profile chassis

Warning: This product can expose you to chemicals including Diisononylphthalate(DINP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Host Interface: PCI Express
Total Number of Ports: 1
Network (RJ-45): Yes
USB: No
Serial Port: No
Ethernet AUI: No
XJACK: No
PoE (RJ-45) Port: No
Number of Network (RJ-45) Ports: 1
Media Type Supported: Twisted Pair
Network Technology: 10/100/1000Base-T
InfiniBand: No
Card Height: Low-profile
Form Factor: Plug-in Card
Height: 3"
Width: 4.7"
Thickness: 590 mil
Weight (Approximate): 1.28 oz
Package Contents: DP Gigabit Ethernet PCIe, Spare Enhanced Low Profile Bracket, Driver CD, User's Manual
Device Supported: PC
Platform Supported: PC, Mac
Assembly Required: No
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: China
