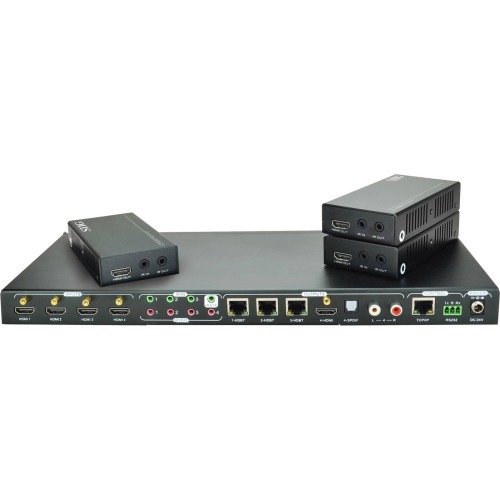

SIIG HDMI HDBaseT 4x4 4K Matrix Kit - 230ft (70m) @1080p & 131ft (40m) @4K Resolution CE-H23W11-S1

SIIG HDMI HDBaseT 4x4 4K Matrix Kit - 230ft (70m) @1080p & 131ft (40m) @4K Resolution

Allows you to select and switch between any of the 4 HDMI source devices to display on any of the 4 HDMI displays simultaneously Select and switch between any of the 4 HDMI source devices to any of the 4 HDMI displays simultaneously HDBaseT outputs supports transmission distances up to 230ft (70m) @1080p and 131ft (40m) @4K resolution Compliant with HDMI 1.4 and HDCP 2.2 Supports up to 4K @30Hz YUV 4:2:0 and 1080p 3D resolution 3 HDBaseT outputs over CAT cables with 3 included Receivers and 1 HDMI output Supports Bi-directional IR control, PoC, powerful EDID management, and manual and auto-detect HDCP management Rack-mountable metal housing Firmware upgradable through the Micro USB port

Warning: This product can expose you to chemicals including Cadmium, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Cable
Number of Input Devices Supported: 4
Device Supported: Display, Computer, Gaming Console, Blu-ray Disc Player, DVD Player
Number of Displays Supported: 4
Graphics Modes: 4K
Maximum Video Resolution: 4096 x 2160
HDMI In: Yes
HDMI Out: Yes
Connectivity (RJ-45): Yes
Number of Connectivity (RJ-45) Ports: 4
Number of USB Ports: 1
Number of HDMI Inputs: 4
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Maximum Operating Distance: 229.66 ft
Form Factor: Rack-mountable
Height: 1.1"
Width: 14.2"
Depth: 5.9"
Weight (Approximate): 4.41 lb
Package Contents:

HDMI HDBaseT 4x4 4K Matrix Kit, 3 x HDBaseT Receiver, Power Adapter, IR Emitter Cable, IR Receiver Cable, IR Remote Control (without battery), RS-232 Cable (Phoenix to 9-pin D-Sub), 2 x Transmitter Mounting Ears , 6 x Screw , 4 x Transmitter Trapezoidal Plastic Pads , 6 x Receiver Mounting Ears , 6 x Screw, 12 x Receiver Round Plastic Pads , User Manual

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
