Taoglas Antenna - 2.49 GHz, 3.30 GHz, 698 MHz, 1.71 GHz, 2.40 GHz to 2.69 GHz, 3.60 GHz, 960 MHz, 2.17 GHz, 5.80 GHz - 3 dBi - Cellular Network, GPS, GLONASS, Wireless Router, Cellular NetworkAdhesive/Wall - SMA, RP-SMA Connector MA950.W.A.LBICG.005

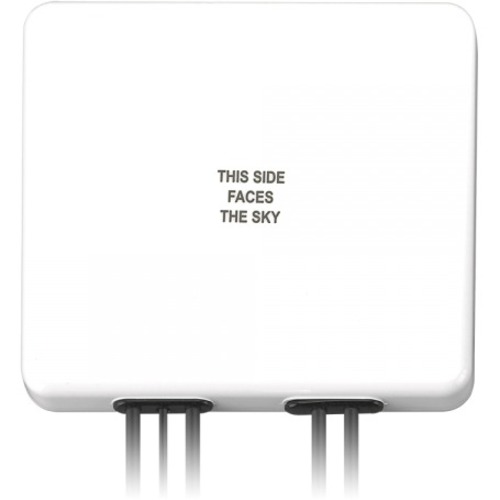

Low Profile 5in1 Wall Mount Antenna A low profile 5in1 wall mount antenna, the MA950 Guardian is the first panel antenna worldwide designed for IoT Gateway and Router devices. It is a next-generation combination with a heavy-duty, fully IP67 waterproof external M2M antenna can be used by RF professionals in IoT Gateway and Routers, HD Video Streaming, Transportation and Remote Monitoring Applications. This antenna delivers powerful MIMO antenna technology for worldwide 4G LTE bands at 698-960MHz/1710-2170MHz/2490-2690MHz/3300-3600MHz bands, dual-band 2.4/5.8GHz Wi-Fi, plus GPS-GLONASS-GALILEO-BeiDou for location accuracy. It enables designers to cover a wide range of technologies by installing a single antenna. 4G wireless applications demand high-speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation among these antennas to prevent self-interference. Low loss cables are used to keep efficiency high over long cable lengths. The GPS-GLONASS-GALILEO-BeiDou active antenna has been carefully designed for excellent performance across all GNSS bands, leading to higher location accuracy and stability of tracking in urban environments.The housing is IP67 waterproof and comes with 3M foam adhesive. The antenna can be mounted internally or externally on a vehicle. The MA950 comes with 1 meter, low loss KSR-200P coaxial cables for the LTE and Wi-Fi antennas, and RG174 coaxial cable for the GNSS antenna as standard. Customized cables and connector versions are also available.
