Taoglas GPS-GLONASS-GALILEO Hercules Heavy Duty Screw Mount - Range - UHF - 1.57 GHz to 1.61 GHz - 27 dB - GPS, GLONASS, Vehicle, Outdoor - Black - Screw Mount - SMA Connector A.40.A.301111

Taoglas GPS-GLONASS-GALILEO Hercules Heavy Duty Screw Mount - Range - UHF - 1.57 GHz to 1.61 GHz - 27 dB - GPS, GLONASS, Vehicle, Outdoor - Black - Screw Mount - SMA Connector

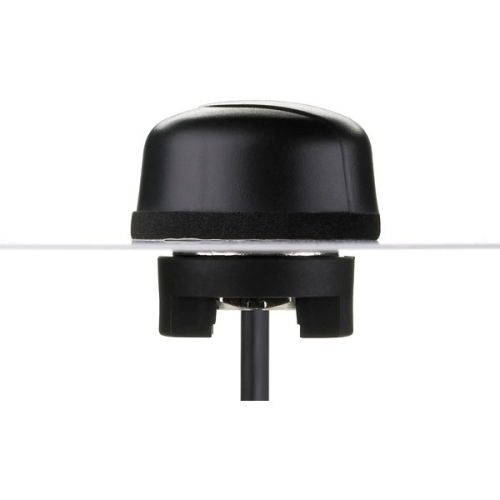

The A.40 Hercules is a high performance thread mount GPS-GLONASS-GALILEO antenna designed for external use on vehicles and outdoor assets. Designed for heavy duty work with one piece C&C machined nickel plated steel base and threads, there are also convenient side slots for running cables laterally. Durable UV resistant PC housing is resistant to vandalism and direct attack. At only 29mm high it complies with the latest EU directives for height restrictions, whilst also enabling covert operation with a diameter of only 49mm. The antenna is completely waterproof with an IP67 rating, plus an additional IP69K rating for waterproof resistance against high pressure water jets used in cleaning.Cable lengths, types and connectors are fully customizable.

Technical Specifications:
Frequency Band Type: UHF
Operating Frequency Range: 1574 MHz to 1606 MHz
Antenna Gain: 27 dB
Connector Type: SMA
Product Color: Black
Height: 1.14"
Diameter: 1.93"
Form Factor: Screw Mount
Weight (Approximate): 4.64 oz
Application/Usage: GPS, GLONASS, Vehicle, Outdoor
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
