Taoglas I-Bar GSA.8841 4G/3G/2G LTE Adhesive Mount Antenna, 1M NFC-200 - 698 MHz, 4.80 GHz, 1.71 GHz, 1.92 GHz, 2.40 GHz, 2.50 GHz, 1.57 GHz to 960 MHz, 6 GHz, 1.99 GHz, 2.17 GHz, 2.50 GHz, 2.70 GHz, 1.61 GHz - Cellular Network, Wireless Data Network, GPS

Taoglas I-Bar GSA.8841 4G/3G/2G LTE Adhesive Mount Antenna, 1M NFC-200 - 698 MHz, 4.80 GHz, 1.71 GHz, 1.92 GHz, 2.40 GHz, 2.50 GHz, 1.57 GHz to 960 MHz, 6 GHz, 1.99 GHz, 2.17 GHz, 2.50 GHz, 2.70 GHz, 1.61 GHz - Cellular Network, Wireless Data Network, GPS, Outdoor - Black - Adhesive Mount - Omni-directional - SMA Connector

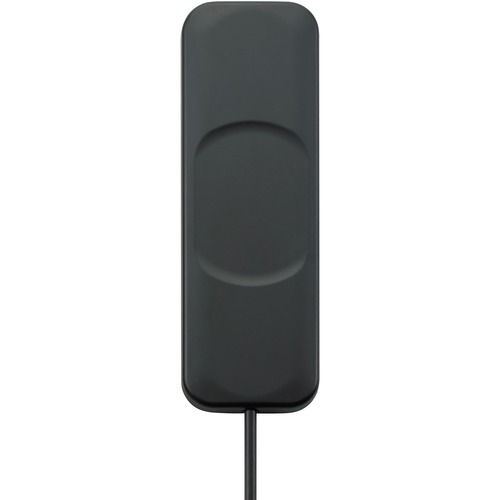

The GSA.8841 LTE Wideband I-Bar Antenna is an external adhesive mount solution on glass and plastic for automotive and telematics applications. It covers not only LTE, but all Cellular, ISM and Wi-Fi working frequencies in the 700-6000 MHz spectrum. It has the highest wide-band efficiency in its range of any antenna in its category today.The GSA.8841 has been primarily designed for use with 4G LTE modules and devices that require the highest possible efficiency and peak gain to deliver best in class throughput on all major cellular 4G bands worldwide for telematics applications. High speed HD video Real-time streaming High capacity MIMO networks on public transportation It comes with 1 meter of coaxial cable and SMA (M) connector, in a low profile compact format for mounting via high quality first tier automotive approved 3M adhesive foam. Stable radiation is observed on both glass and plastic. The GSA.8841 is backward compatible with 3G and 2G cellular applications such as HSPA, as well as covering WI-FI bands, and even has GPS/GALILEO included for E911 applications. It is an ideal solution for any device requiring high, reliable performance. It will meet nearly all carrier certification requirements from an efficiency standpoint. The antenna also makes an excellent reference antenna for test purposes. It has been designed as an omni-directional antenna and the radiation patterns show this and are stable across all bands.

Technical Specifications:
Directivity: Omni-directional
Operating Frequency Range: 698 MHz to 960 MHz, 4800 MHz to 6000 MHz, 1710 MHz to 1990 MHz, 1920 MHz to 2170 MHz, 2400 MHz to 2500 MHz, 2500 MHz to 2700 MHz, 1565 MHz to 1612 MHz
Connector Type: SMA
Product Color: Black
Height: 6.95"
Width: 2.33"
Depth: 0.46"
Form Factor: Adhesive Mount
Weight (Approximate): 4.48 oz
Application/Usage: Cellular Network, Wireless Data Network, GPS, Outdoor
Package Contents:

I-Bar GSA.8841 4G/3G/2G LTE Adhesive Mount Antenna, 1M NFC-200, 1m Coaxial Cable, SMA (M) Connector

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
