Taoglas Pantheon MA761 4in1 LTE/Wi-Fi MIMO Antenna, 3M CFD-200 - 824 MHz, 880 MHz, 1.71 GHz, 1.85 GHz, 1.92 GHz, 2.50 GHz, 2.90 GHz, 698 MHz to 894 MHz, 960 MHz, 1.88 GHz, 1.99 GHz, 2.17 GHz, 2.69 GHz, 3.50 GHz, 824 MHz - 3.6 dBi - Cellular Network, Wirel

Taoglas Pantheon MA761 4in1 LTE/Wi-Fi MIMO Antenna, 3M CFD-200 - 824 MHz, 880 MHz, 1.71 GHz, 1.85 GHz, 1.92 GHz, 2.50 GHz, 2.90 GHz, 698 MHz to 894 MHz, 960 MHz, 1.88 GHz, 1.99 GHz, 2.17 GHz, 2.69 GHz, 3.50 GHz, 824 MHz - 3.6 dBi - Cellular Network, Wireless Data Network, Outdoor - Black - Screw Mount - Omni-directional - SMA, RP-SMA Connector

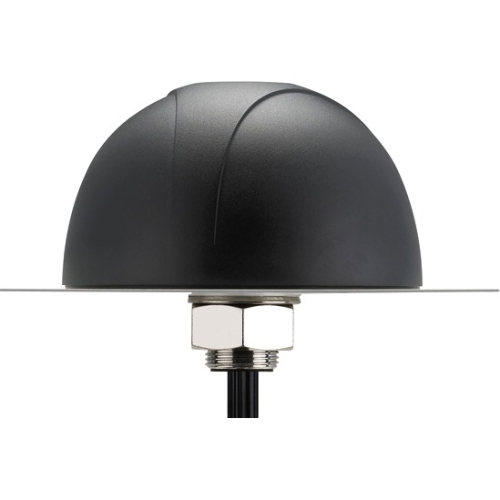

MA761 Pantheon antenna is an omni-directional, heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications.This unique antenna delivers powerful MIMO antenna technology for LTE and Wi-Fi 802.11n and emerging 802.11ac for next generation high bandwidth telematics systems.New fleet management and video location technology allows for real-time video uplink and downlink. High efficiency high gain MIMO antennas are necessary to achieve the high signal to noise ratio and throughput required to solve these challenges. We have packed 4 high efficiency and gain antennas in an extremely robust IP67 direct mount antenna package with good isolation (10dB+). The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance. The cables are low loss allowing for lengths of up to 10 meters (32 '' and 9.70 "), critical for buses, trains and other commercial transport applications.Customized cables and connector version available.

Technical Specifications:
Directivity: Omni-directional
Operating Frequency Range: 824 MHz to 894 MHz, 880 MHz to 960 MHz, 1710 MHz to 1880 MHz, 1850 MHz to 1990 MHz, 1920 MHz to 2170 MHz, 2500 MHz to 2690 MHz, 2900 MHz to 3500 MHz, 698 MHz to 824 MHz
Antenna Gain (Isotropic): 3.6 dBi
Connector Type: SMA, RP-SMA
Product Color: Black
Height: 3.33"
Diameter: 5.64"
Form Factor: Screw Mount
Weight (Approximate): 2.56 lb
Application/Usage: Cellular Network, Wireless Data Network, Outdoor
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
