Tripp Lite 4-Port HDMI Over Cat5/Cat6 Video Extender / Splitter TAA / GSA - 1 Input Device - 5 Output Device - 200 ft Range - 4 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Twisted Pair - Category 6 - Rack-mountable - TAA Compliant - RoHS, TAA Complia

Tripp Lite 4-Port HDMI Over Cat5/Cat6 Video Extender / Splitter TAA / GSA - 1 Input Device - 5 Output Device - 200 ft Range - 4 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Twisted Pair - Category 6 - Rack-mountable - TAA Compliant - RoHS, TAA Compliance

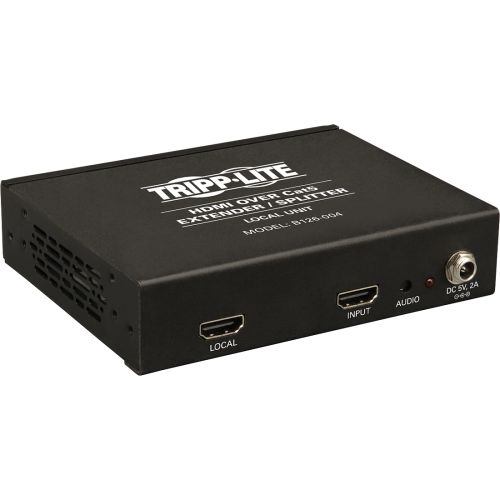

The B126-004 4-Port HDMI over Cat5/Cat6 Extender/Splitter works with Tripp Lite B126-Series remote receivers to split a single HDMI audio/video signal into five separate signals-one local and four remote. It''s ideal for digital signs, trade shows, presentations, retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source. It uses HDMI cable (see Tripp Lite''s P568-Series) to connect to the source and the local monitor and Cat5e/6 cable to transmit to the remote monitors (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite''s N202-Series).When used with Tripp Lite''s B126-1A0 or B126-1A0-WP-1 active remote receivers, the Extender/Splitter can extend a 1080i (60 Hz) signal up to 200 ft., a 1080p signal (60 Hz) up to 150 ft. and a 3D signal up to 125 ft. With a B126-1P0 or B126-1P0-WP-1 passive remote receiver, it can extend a 1080i (60 Hz) signal up to 100 ft. and a 1080p (60 Hz) signal up to 50 ft. By daisy-chaining up to three Extender/Splitters, one video source can transmit to as many as 13 monitors-one local and 12 remote. Add up to three B126-110 remote repeaters to each channel to fully extend the signal range or add more displays.In addition to crystal-clear video, the B126-004 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware. Included HDMI cable with latching connectors provides a more secure connection.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 5
Maximum Operating Distance: 200 ft
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 4
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Product Color: Black
Transmitter Height: 1.13"
Transmitter Width: 5"
Transmitter Depth: 4"
Form Factor: Rack-mountable
Package Contents: B126-004 Video Extender, 1 ft. HDMI Daisychain Cable, Mounting Hardware, External Power Supply, Owner Manual
Certifications & Standards: TAA, HDCP
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
TAA Compliant: Yes
