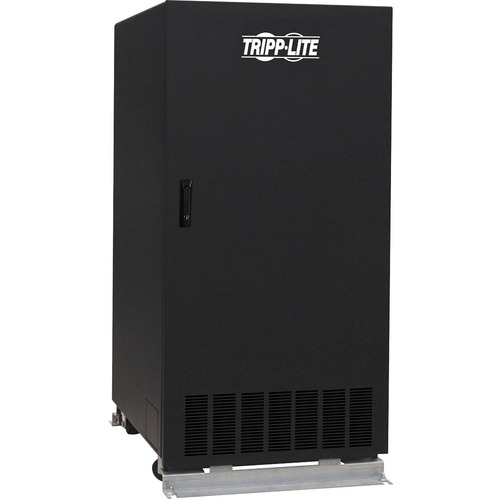

Tripp Lite Battery Pack 3-Phase UPS +/-120VDC 1 Cabinet No Batteries Included - TAA Compliant - TAA Compliance EBP240V2501NB

Tripp Lite Battery Pack 3-Phase UPS +/-120VDC 1 Cabinet No Batteries Included - TAA Compliant - TAA Compliance

Add Batteries to Empty Cabinet to Extend Runtime of SV-Series UPS Systems This external backup battery pack consists of one battery cabinet that requires 20 user-supplied CSB HRL12280W (or equivalent) sealed lead acid batteries to give your Tripp Lite SV-Series 3-phase UPS system more runtime. It uses a +/-120VDC configuration and must be hardwired to a compatible UPS system. Multiple battery packs may be connected in parallel to increase runtime even longer. A UL-listed DC circuit breaker protects against too much current. The EBP240V2501NB is compatible with all Tripp Lite UPS models that begin with SV20, SV40, SV60, SV80, SV100, SV120 and SV140. Designed and Constructed to Ensure Consistent Power for a Long Time This 120V UPS battery pack is made from heavy-gauge welded steel with a baked powder-coated finish that protects the cabinet from chipping and corrosion. The hinged cabinet door locks to prevent tampering and to facilitate easy access to the internal batteries. User-supplied power output cables feed into the cabinet through conduit knockouts built into the cabinet''s exterior. Front and rear vents allow the free flow of warm air out of the cabinet to maintain cool internal temperatures. Sturdy metal casters allow you to smoothly roll the backup battery pack into position. TAA-Compliant for GSA Schedule Purchases The EBP240V2501NB is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. Typical Applications Extend the runtime of your compatible Tripp Lite UPS system in a data center or telecom network Connect multiple battery packs in parallel to further extend runtime for mission-critical equipment System Requirements Any Tripp Lite UPS model that begins with SV20, SV40, SV60, SV80, SV100, SV120 or SV140 20 user-supplied CSB HRL12280W (or equivalent) sealed lead acid batteries

Technical Specifications:
Output Voltage: 120 V DC
Form Factor: Tower
Height: 59"
Width: 29"
Depth: 31.5"
Weight (Approximate): 455 lb
Package Contents:

EBP240V2501NB Power Array Cabinet, Owner's Manual

Compatibility:

Tripp Lite SV-Series 3-phase UPS systems:

SV20, SV40, SV60, SV80, SV100, SV120, SV140

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: United States
TAA Compliant: Yes
