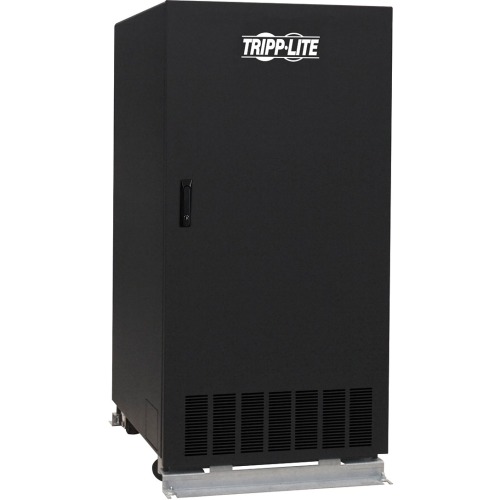

Tripp Lite EBP240V6002 UPS Battery Pack - 120 V DC - Sealed Lead Acid (SLA) - Sealed - TAA Compliant - TAA Compliance EBP240V6002

Tripp Lite EBP240V6002 UPS Battery Pack - 120 V DC - Sealed Lead Acid (SLA) - Sealed - TAA Compliant - TAA Compliance

Features UPS Battery Pack Extends the Runtime of Your SV-Series 3-Phase UPS System This external backup battery pack consists of two battery cabinets containing sealed lead acid batteries designed to give your Tripp Lite SV-Series UPS system more runtime. It uses a +/-120VDC configuration and must be hardwired to a compatible UPS system. You can also connect more battery packs in parallel to increase runtime even longer. A UL-listed DC circuit breaker protects against too much current. The EBP240V6002 is compatible with all Tripp Lite UPS models that begin with SV20, SV40, SV60, SV80, SV100, SV120 and SV140. Designed and Constructed to Ensure Consistent Power for a Long Time This 120V UPS battery pack is made from heavy-gauge welded steel with a baked powder-coated finish that protects the cabinets from chipping and corrosion. The hinged cabinet door locks to prevent tampering and to facilitate easy access to the internal batteries. User-supplied power output cables feed into the cabinets through conduit knockouts built into the cabinets'' exterior. Front and rear vents allow the free flow of warm air out of the cabinets to maintain cool internal temperatures. Sturdy metal casters allow you to smoothly roll the backup battery pack into position. TAA-Compliant for GSA Schedule Purchases The EBP240V6002 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. Typical Applications Extend the runtime of your compatible Tripp Lite UPS system in a data center or telecom network Connect multiple battery packs in parallel to further extend runtime for mission-critical equipment System Requirements Any Tripp Lite UPS model that begins with SV20, SV40, SV60, SV80, SV100, SV120 or SV140

Technical Specifications:
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Output Voltage: 120 V DC
Height: 59"
Width: 58"
Depth: 31.5"
Weight (Approximate): 4487 lb
Package Contents:

EBP240V6002 UPS Battery Pack, Owner's Manual

Compatibility:

Tripp Lite SV-Series 3-phase UPS systems:

SV20, SV40, SV60, SV80, SV100, SV120, SV140

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: United States
TAA Compliant: Yes
