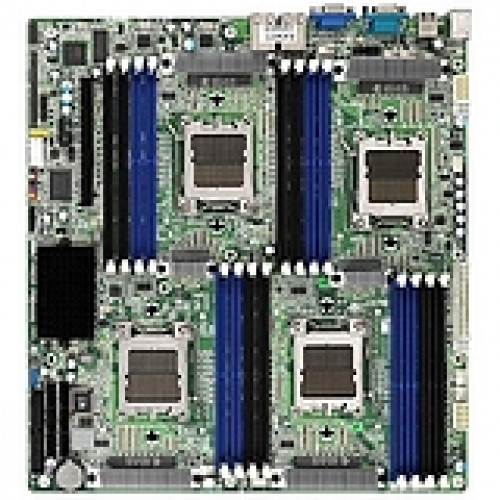

Tyan Thunder (S4980) Server Motherboard - NVIDIA Chipset - Socket F (1207) - 64 GB DDR2 SDRAM Maximum RAM - DDR2-667/PC2-5300, DDR2-533/PC2-4200, DDR2-400/PC2-3200 - 16 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces S4980G2NR

Tyan Thunder (S4980) Server Motherboard - NVIDIA Chipset - Socket F (1207) - 64 GB DDR2 SDRAM Maximum RAM - DDR2-667/PC2-5300, DDR2-533/PC2-4200, DDR2-400/PC2-3200 - 16 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

Extensively for HPC, EDA, various high cluster simulations and digital rendering, the Thunder n3600QE (S4980) Server Board can fully support up to four quad-core AMD Opteron 8000 Series Processors (Socket 1207). Additional features include 16 DDR2 667/533/400 DIMMs of Reg. ECC memory, nVIDIA nForce Pro 3600 chipset, six SATA ports with RAID 0/1/10/5 support, a build-in XGI graphic, one PCI-E slot for expansion and dual GbE all in a E-ATX form factor.

Technical Specifications:
Chipset Manufacturer: NVIDIA
Chipset Model: nForce Pro 3600
Total Processor Supported: 4
Processor Technology: HyperTransport Technology
Processor Socket: Socket F LGA-1207
Processor Supported: Opteron
HyperTransport Speed (MHz): 1000
Number of Memory Slots: 16
Maximum Memory Supported: 64 GB
Memory Standard: DDR2-667/PC2-5300, DDR2-533/PC2-4200, DDR2-400/PC2-3200
Memory Technology: DDR2 SDRAM
Memory Speed Supported: 667 MHz, 533 MHz, 400 MHz
Controller Type: Floppy Controller, Serial ATA/300, Ultra ATA/133 (ATA-7)
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: XGI
Graphics Controller Model: Volari Z7 (XG20)
Graphics Controller Memory: 16 MB
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
Serial Port: Yes
VGA: Yes
Network (RJ-45): Yes
Number of IDE Interfaces: 1
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 1
Onboard LEDs Header: Yes
Width: 13"
Depth: 12"
Package Contents: Thunder n3600QE (S4980) Server Board, 1 x Ultra-DMA-133/100/66/33 IDE cable, 3 x Serial ATA power cable, 6 x Serial ATA Cable, 1 x USB2.0 cable, 1 x COM Port Cable, 1 x Thunder n3600QE user manual, 1 x Thunder n3600QE Quick Reference guide, 1 x TYAN driver CD, 1 x I/O shield, 4 x CPU Retention Frame and Back Plate
Additional Information:

Chipset:

nVIDIA nVidia nForce Pro 3600 (MCP55 Pro), SMSC SCH5017

System Management:

SMSC SCH5017 w/ 3xEMC6D103, (4) CPU Fan & (4) 4-pin system Fan headers, w/ tachometer input and auto fan control, Temperature & voltage monitoring, Watchdog timer support, Port 80 code display LED

Server Management:

M3291, IPMI 2.0 Remote System Mgmt card, Renesas H8S2167 BMC controller, BT, KCS, Logging support, IPMI-over-LAN, Remote power on/off and reset, 2-pin warning LED

BIOS Features:

AMI BIOS 8 Mbit Flash, Supports ACPI 2.0, PnP, DMI2.0, WfM2.0 Power Management, ACPI S1, S4, S5 support
