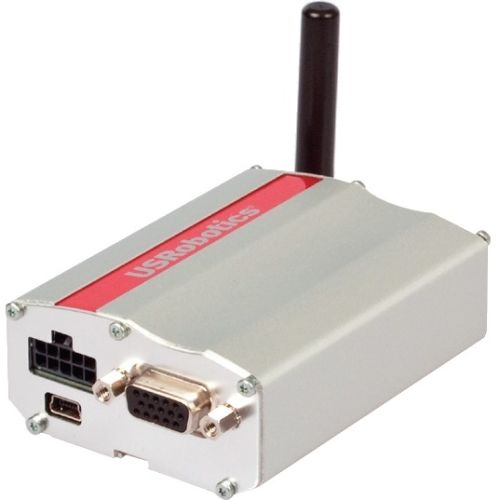

U.S. Robotics USRobotics Courier M2M 3G GSM Intelligent Cellular Modem USR3500

U.S. Robotics USRobotics Courier M2M 3G GSM Intelligent Cellular Modem USR3500
Brand: U.S. Robotics
Part Number: USR3500
Availability: 5 or more
Condition: New
Email Us

USRobotics Courier M2M 3G GSM Intelligent Cellular Modem

Comprehensive Secure M2M Cellular Solution with Powerful Embedded SoftwareIntroducing the new USRobotics Courier M2M 3G Cellular modem, the latest in the Courier product line known around the world for its reliability, security and performance for mission critical applications. The intelligent terminal is ready to use out of the box on GSM HSPA+ global wireless networks with GPS capabilities and added powerful embedded software for easier programming, configuration, and customization. One configuration enables the option for persistent connectivity for M2M applications that require always-on bidirectional data transfers. With an extended working temperature range and compact size this reliable device is an ideal solution for M2M applications including remote maintenance & control, Point of Sale, environmental monitoring, transportation, automation, security systems, and Out of Band management. Carrier approved with full certifications, this device is ready for quick implementation, reducing customer costs significantly and lowering the entry barriers to a wide range of M2M solutions for an easier transition from analog to cellular.


Technical Specifications:
Height: 1.2"
Width: 3.5"
Depth: 2.4"
Weight (Approximate): 4.48 oz
Additional Information: Physical:1 USB 2.0 connection: Standard Mini USB Type B, 1 RS-232 connection: DB15-F, 1 SIM slot (1.8V/3V), 1 Main Antenna Connection: 50 Ohm SMA female, 1 Diversity Antenna Connection: 50 Ohm SMA female, 1 GPS Antenna Connection: MMCX, Power Connector: 10 pin Micro-Fit™ socket, 2 GPIO Pins, AT command controlled, LED Network status indicatorRadio Technology & Frequency Bands:HSPA+, 3G Penta-band 800, 850, 900, 1900, 2100 MHz, 2G 850, 900, 1800, 1900 MHz, Voice and Data support, HSDPA Packet Data up to 14.4 Mbps, SMS - Text & PDU, Point-to-Point (MT/MO), Cell broadcast
Country of Origin: China
