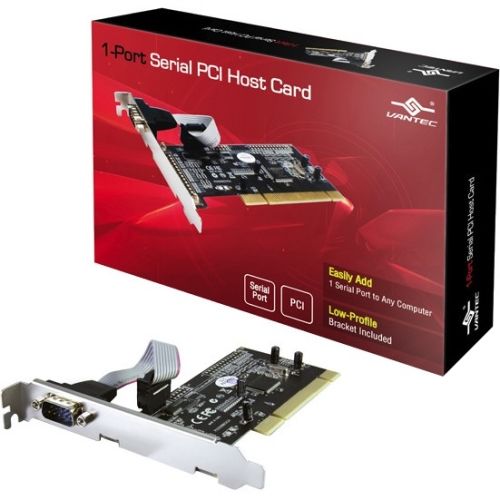

Vantec 1-Port Serial (RS-232) PCI Host Card - 1 Pack - Low-profile Plug-in Card - PCI - PC UGT-PC10SR

Vantec 1-Port Serial (RS-232) PCI Host Card - 1 Pack - Low-profile Plug-in Card - PCI - PC

This UGT-PC10SR is part of a series of I/O card based on the PCI technology. It offers ONE independent Serial Communication port that enables the user a simple way to add serial ports to any computer. The card is design to meet PCI local bus specification rev. 2.3 and allow you to plug in one device to a computer whether it be a Point of Sale terminals, modems, printers, scanners, cash registers, bar code readers, keypads, numeric displays, electrical scales, data acquisition equipment, and other serial devices for the PC and compatible systems. This card is easy to use and install with the standard or low profile brackets virtually in any PC with all major operating systems. The I/O address and IRQ are automatically configured to simplify the installation at the same time offers a reliable and high performance solution for Serial Communication.

Technical Specifications:
Host Interface: PCI
Data Transfer Rate: Up to 115200bit/s
UART Type: 16C450, 16C550
Platform Supported: PC
Form Factor: Plug-in Card
Card Height: Low-profile
Height: 0.9"
Width: 2.2"
Length: 4"
Package Contents: 1-Port Serial (RS-232) PCI Host Card, 1 x Driver CD, 1 x User Manual, 1 x Low Profile Brackets
Environmentally Friendly: Yes
Environmental Certification: WEEE
